835 SLY SPECIFICATIONS



MACHINING CAPACITY

Maximum bar capacity…………………………………… 3.15”

Maximum machining diameter………………………….. 12.6”

Maximum machining length…………………………… 21.65”

Maximum swing over diameter………………………… 20.5”

Maximum Y-axis stroke………………………. +2.36”/-1.57”

MAIN SPINDLE

Draw-tube capacity……………………………… 3.15”(80mm)

Spindle bore………………………………………………….. 4.4”

Spindle speed range (infinitely variable)……………… 3200

Variable speed steps……………………………… Direct drive

Spindle motor (Fanuc 22S)……………………………… 35 HP

Motor type……………………………………………. Wide range

Spindle nose…………………………………………….. ASA A8

SUB- SPINDLE

Bar capacity………………………………………. 1.77”(45mm)

Spindle bore………………………………………. 2.16”(55mm)

Spindle speed range (infinitely variable)……………… 4000

Spindle drive motor

(variable speed) max rating………………………………. 10HP

Spindle nose…………………………………………… ASA A2-5

Slide movement(B-axis)………………………….. NC control

Slide stroke (B-axis)…………………………………….. 20.08”

Rapid traverse rate (B-axis)………………………….. 945 IPM

Spindle positioning…….. programmable M16 to .001 deg.

TURRET

Turret type………………………. non-lift, hydraulically actuated

Turret indexing time     ………. . 0.10 sec/pos.(1-station)

Turret indexing type………………………………. bi-directional

Number of stations…………………………………………….. 12

WORK HOLDING

Standard

Main spindle                   B93…………………………. .3 1/8”

Sub-spindle                     B60…………………………. . 1.77”

Optional

Main spindle                B93………………………… . 3-1/4”

Autoblok chuck……………… . 8”

Autoblok chuck……………. . 10”

Sub-spindle                  Autoblok chuck……………… . 6”



REVOLVING  TOOL ATTACHMENT TURRET

Number of positions…………………………………………. 12

Drive motor – max. rating (Fanuc)…………………… 5 HP

Speed range (infinitely variable)……………… 4000 RPM

Machining capacity      – drilling………………….. . 25/32”

– end mill………………… . 25/32”

– tapping………………………. . ½”

Engagement time…………………………………. immediate

C-AXIS CONTROL W/ SPINDLE POSITIONING

Spindle……………………………………………………… Main

Spindle positioning………………………………….. Full “C”

Minimum command increment…………….. 0.001 degree

Positioning system…………………………… Spindle motor

Degree of movement……………………….. .Programmable

Rapid speed rate……………………………………. 100 RPM

GENERAL INFORMATION

Voltage required…………………….. 400 volt ac, 3-phase

Air required………………………………… 80 psi @ 4 CFM

Amperage Draw…………………………………….. 75 Amp.

MACHINE DIMENSIONS

Width………………………………………………………. 77.4”

Height……………………………………………………… 84.6”

Length…………………………………………………… . 117.3”

Length with chip conveyor………………………….. 157.5”

Machine weight with chip conveyor………… 10,580 lbs.



Product Details


Johnford VMC-1600



MACHINE SPECIFICATIONS







Travels

Longitudinal Travel (X) Axis                                           63″

Cross Travel (Y) Axis                                                    33.5″

Vertical Trave (Z) Axis                                                   28″

Table to Spindle                                                            5.9″ min/33.9″ max

Spindle Center to Column                                              35″



Table

Table Working Surface                                                  70.9″ x 29.5″

Maximum Workload on Table                                         10,000 LBS.

Table Surface                                                               Ground / T-slotted

No. of T-slots x Width                                                    7 x 18mm



Spindle



Spindle Taper                                                                CAT-40



Spindle Speed                                                              0-10,000

Ballscrews and Axis Motors

X-Y-Z Ballscrew Diameter                                              50mm (1.98”) x 10mm pitch

Ballscrew Type                                                              Class 3 double nut pre-loaded

Ballscrew Mounting Type                                               Pre-tensioned

X-Y-Z Servo Motor HP                                                   9.0 – 9.0 – 5.2HP

Servo Motor Mounting                                                   Direct coupled



Feeds

Rapid Traverse Rate X,Y,Z                                            708, 472 IPM

Cutting Feed Rate                                                         472 IPM

Positioning Accuracy                                                     +/- 0003″ full stroke

Repeatability                                                                 .0002″



General

Coolant Tank Capacity                                                  120 Gallons

Machine Weight (base machine only)                             38,500 LBS

Floor Space                                                                  178” x 178″ x 137”

Machine Power Source                                                  208 / 220 Volts, 3 Phase 150 Amps**

Air Source                                                                     90 PSI

**Consult AMT or your local distributor for exact power requirements when ordering**





Machine Specifications Continue Next Page

MACHINE SPECIFICATIONS (CONTINUED)





Automatic Pallet Changer (option)

Table Working Surface                                                  66.9″ x 29.5″

Maximum Workload on Pallet                                         4000 LBS.

Pallet Surface                                                               Milled / T-slotted

No. of T-slots x Width                                                    7 x 18mm

Pallet Change Time                                                       40 seconds





Standard Machine Accessories

Full Machine Enclosure Guarding

Flood Coolant System with programmable air blast

Air blast for spindle

Auto Lubrication with Alarm

(4) Screw type chip conveyors for automated chip removal

Halogen work lamp

2 speed geared head with spindle / headstock cooler

Remote Handwheel

Heat exchangers for control cabinets

Rigid Tapping

Product Details

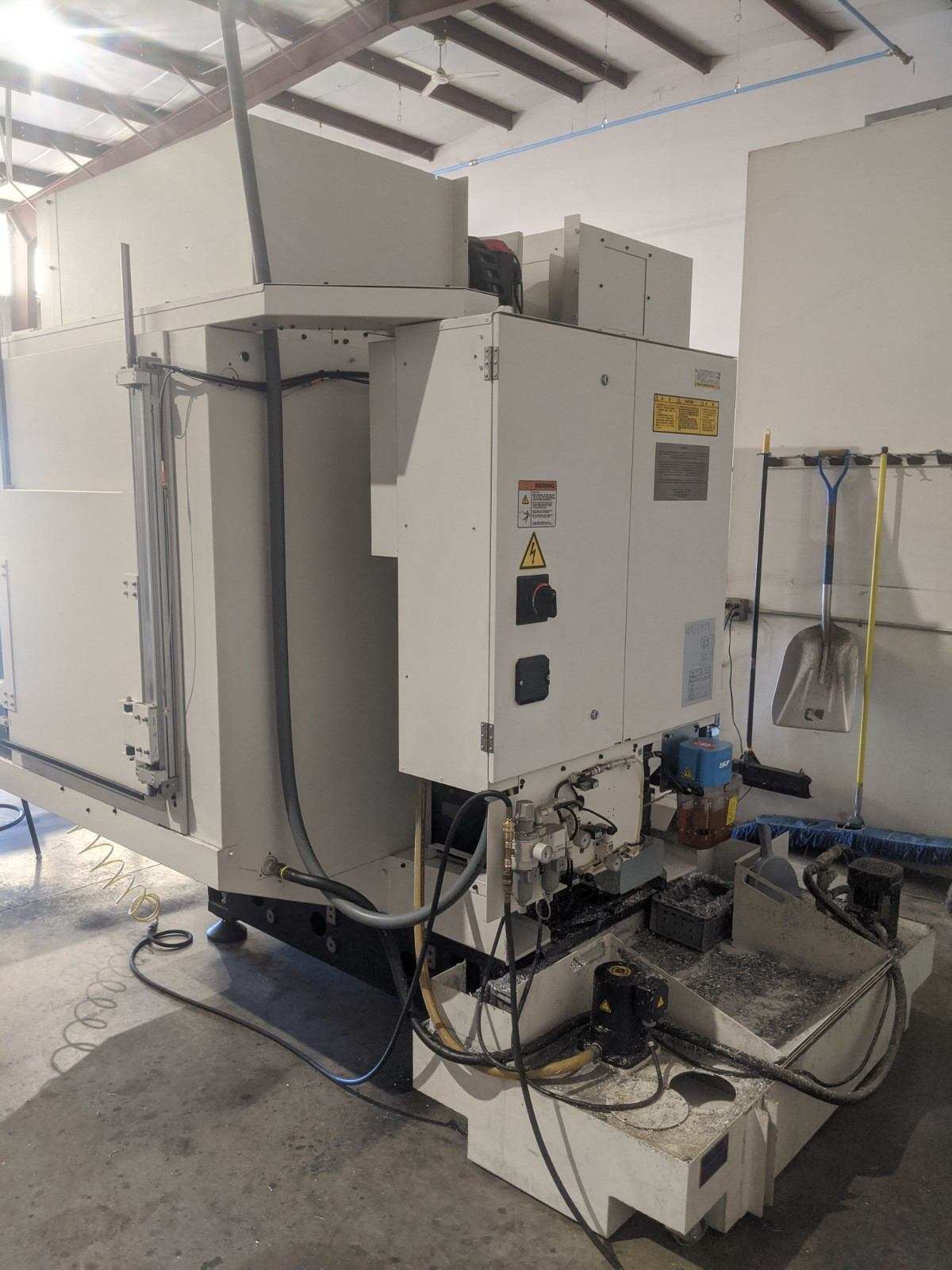

2019 FANUC D21LiB5 10k Robodrill
Installed new in 2019.  Serviced by SES.  Excellent Condition. Call for Price and Availability.
Equipped with:
Chip flush
Auto door right side
DDR rotary table with pneumatic clamping
Standard Specifications:

Specifications:
X-Axis Travel: 28″
Y-Axis Travel: 15.7
Z-Axis Travel: 15.7
Spindle to Table: 3.1-18.9
Table Size: 25.6 x 15.7
Table Capacity: 881 lbs
Tool to Tool Change Time: 0.7 sec
Chip to Chip Change Time: 1.3 sec
Max Tool Length: 9.8″
Max Tool Diameter: 3.14″
Spindle Taper: BBT-30 Big Plus
Spindle Speed: 10000rpm
18.7* / 7.5** HP
X-Axis Rapid Traverse: 2125 ipm
Y-Axis Rapid Traverse: 2125 ipm
Z-Axis Rapid Traverse: 2125 ipm
ATC Turret Capacity: 21 tools

Equipped with:
Fanuc 31i-B5
Ai Contour Control II
NANO Smoothing
Jerk Control
1000 Block Look Ahead Expansion
8MB NC Memory
Rotary Table Dynamic Fixture Offset
Inverse Time Feed
Tool Center Point Control for 5 Axis
Titled Work Plane Command
3D Cutter Compensation
High Speed Skip
Multi Channel Skip Function



Product Details


Installed New in 2014. Machine is is mint condition!

Click to see the specifications and details in original PDF quote



Feeler FT-200



• Standard Equipment

• Fanuc 0i-TD control
• 4,500 RPM / 20HP spindle motor
• 2.59 in bar capacity
• 12 station turret
• Servo Tail Stock with programmable Quill
• 8 inch 3-jaw power chuck
• Hydraulic quill movement
• Automatic Tool Setter
• Parts Catcher
• Chip conveyor

• Bar feeder interface
• 100 psi coolant pump
• Tool holder package
• Hard jaw (1 set)
• Flood coolant over main spindle
• Automatic lubrication system
• Enclosed splash guard
• Safety interlock package
• Triple Alarm Lamp
